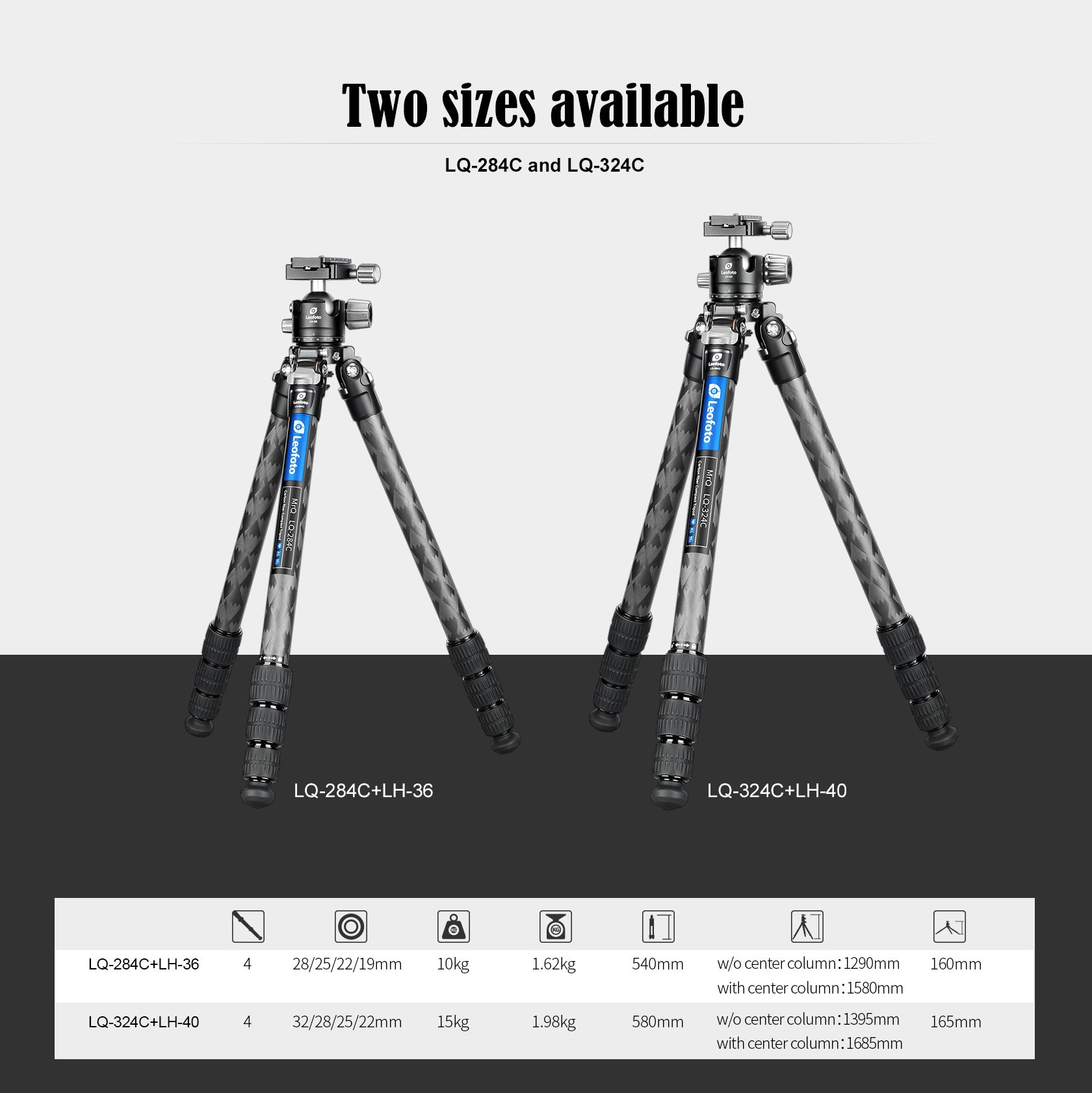

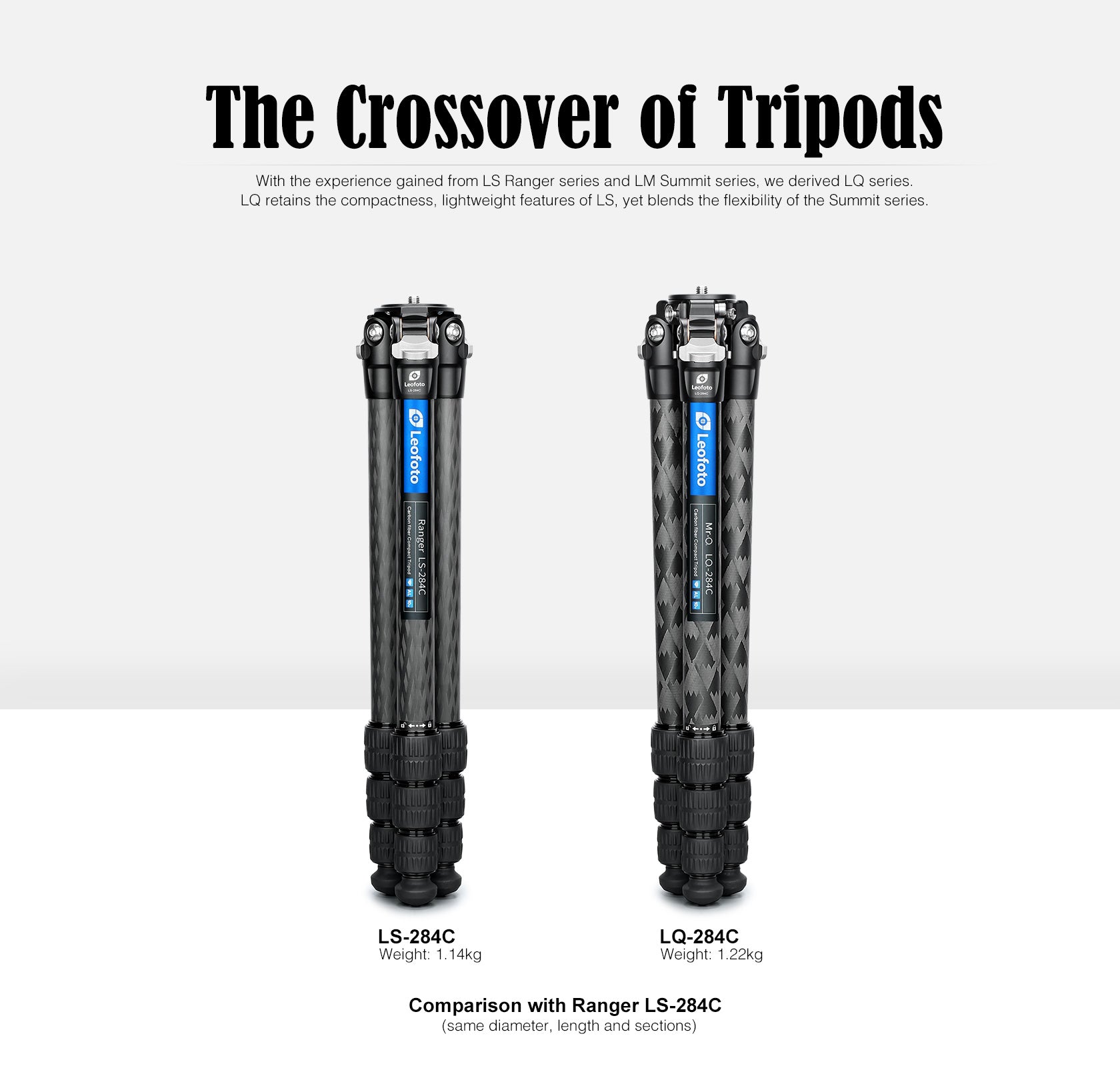

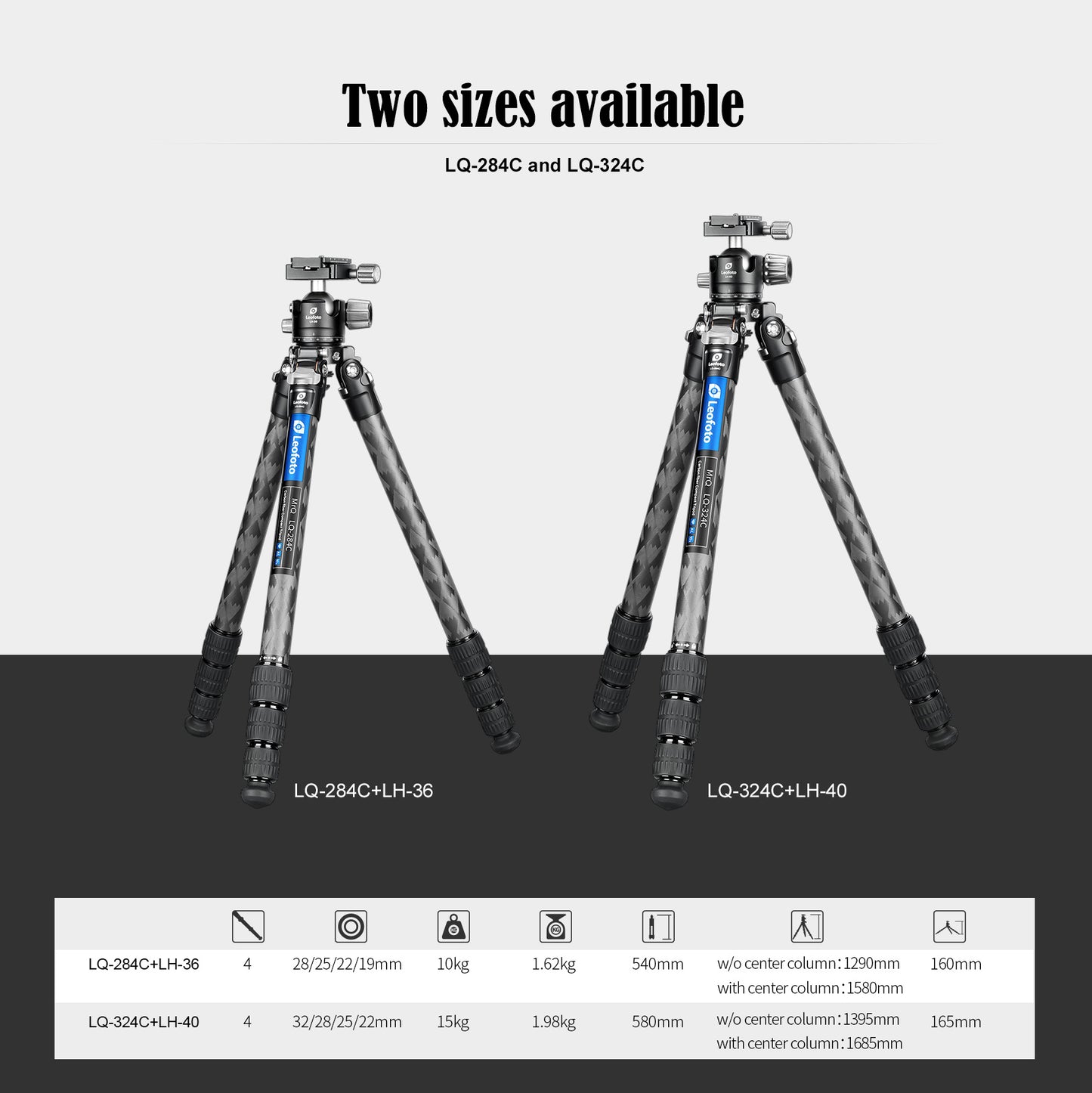

LQ-284C Load Capacity: 10 kg Weight: 1380g (without ballhead)
Max Height without center column: 1290mm Max Height with center column: 1580mm Min Height: 80mm Folded Length: 540mm Leg Section:4 Leg Material:Carbon fiber
Platform Diameter = 50mm

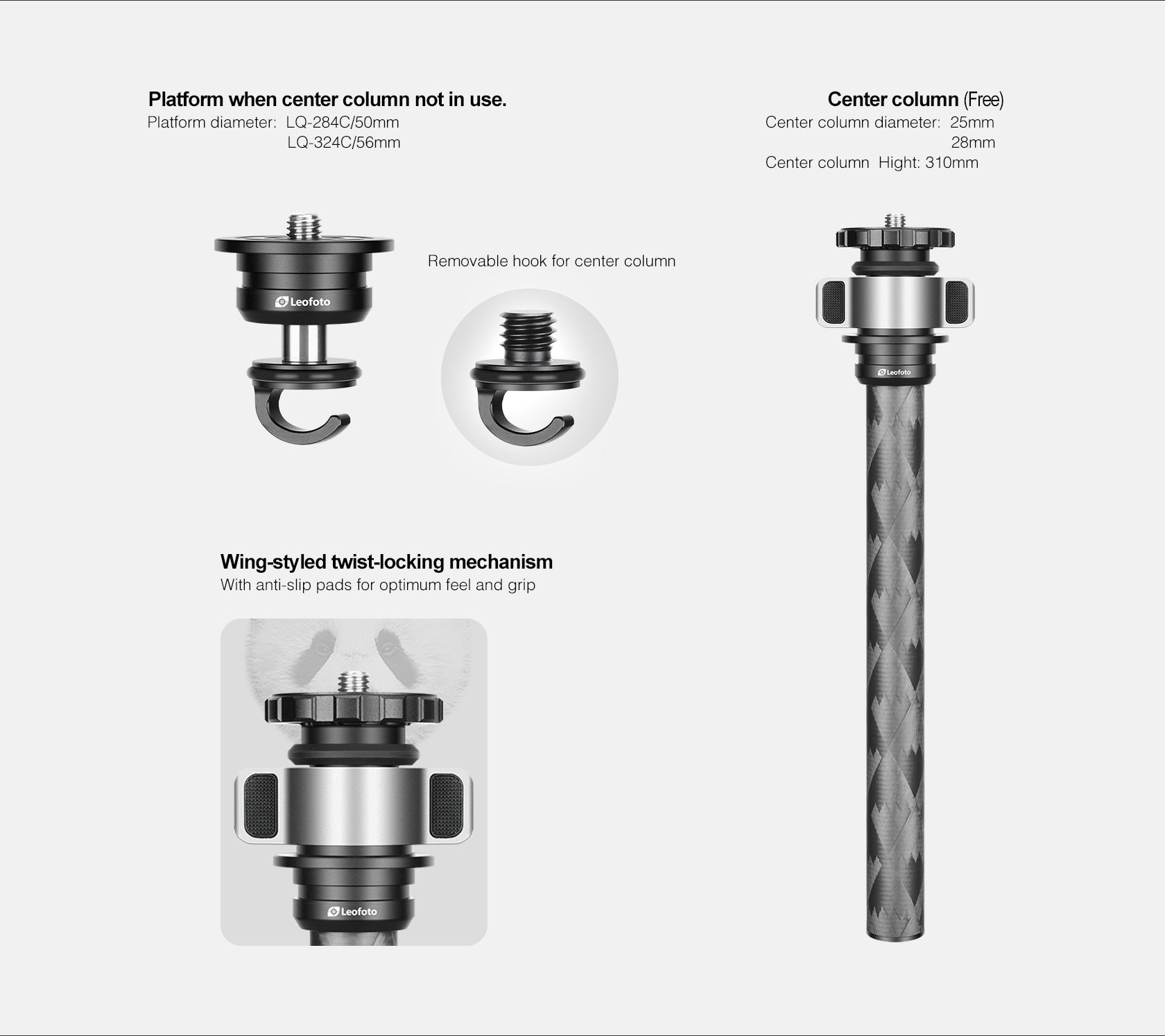

Center column diameter = 25mm (bundled item)
Tubes Diameter: 28/25/22/19mm
LQ-324C Load Capacity: 12 kg Weight: 1470g (without ballhead) Max Height without center column: 1395mm Max Height with center column: 1685mm Min Height: 80mm Folded Length: 580mm Leg Section:4 Leg Material:Carbon fiber
Platform Diameter = 56mm
Center column diameter = 28mm (bundled item)
Tubes Diameter: 32/28/25/22mm
LQ-365C
Load Capacity: 20 kg Weight: 1650g (without ballhead) Max Height without center column: 1680mm Max Height with center column: 1930mm Min Height: 80mm Folded Length: 590mm Leg Section:4 Leg Material:Carbon fiber
Platform Diameter = 60mm
Center column diameter = 32mm (bundled item)
Tubes Diameter: 36/32/28/25/22mm
LH-30R Ballhead (With panning clamp)
Ball diameter: 30mm
panning base diameter: 47mm
Height: 74mm
Mounting hole: UNC3/8"-16
Max load: 12kg
Weight: 325g
LH-36R Ballhead (With panning clamp)
Ball diameter: 36mm Panning base diameter: 52mm Height: 82mm Mounting hole: UNC3/8"-16 Max load: 18kg Weight: 400g
LH-40R Ballhead (With panning clamp)
Ball diameter: 40mm Panning base diameter: 57mm Height: 90mm Mounting hole: UNC3/8"-16 Max load: 20kg Weight: 540g

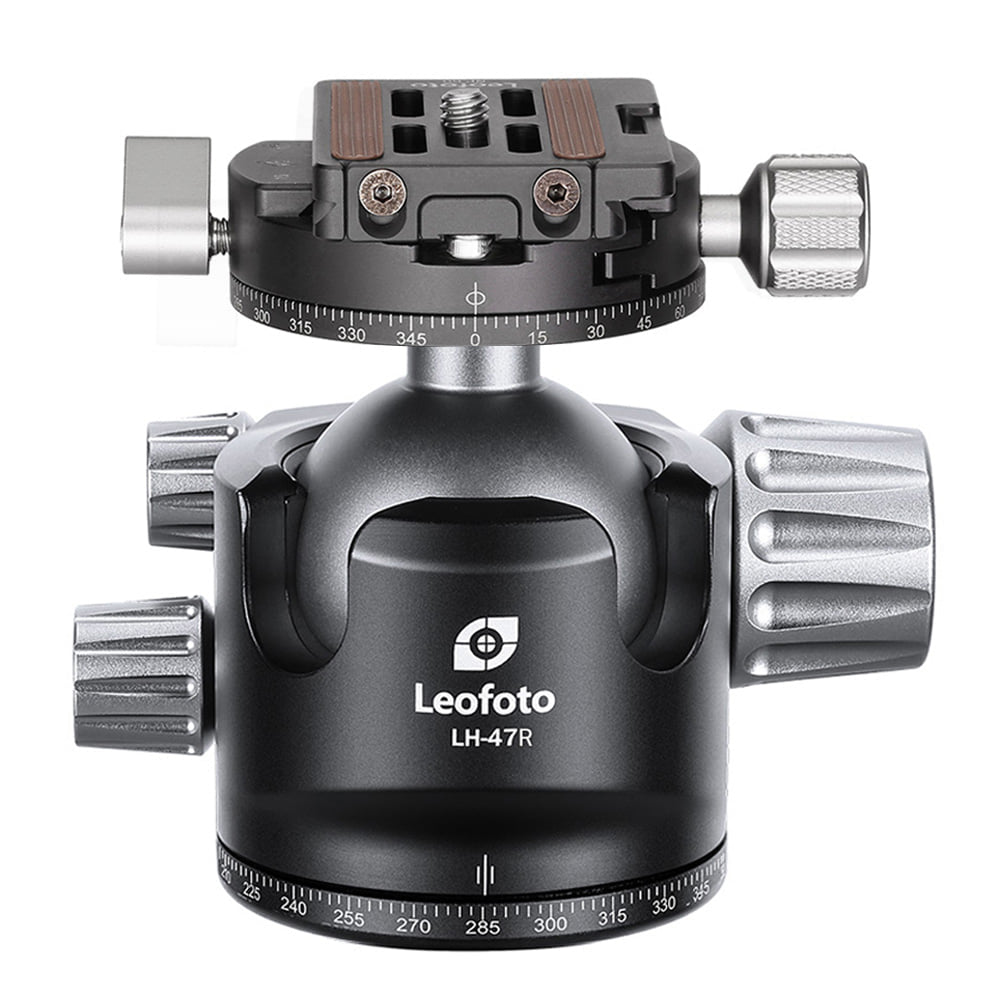

LH-47R Ballhead (With panning clamp)
Ball diameter: 47mm Panning base diameter: 62mm Height: 98mm Mounting hole: UNC3/8"-16 Max load: 22kg Weight: 625g
