Leofoto LB-60N, LB-65, LB-75, LB-75S leveling base

Leofoto LB-60N, LB-65, LB-75, LB-75S leveling base

Regular price $118.00 SGD
Regular price $118.00 SGD Sale price $118.00 SGD
Sale Sold out
Taxes included.
Size

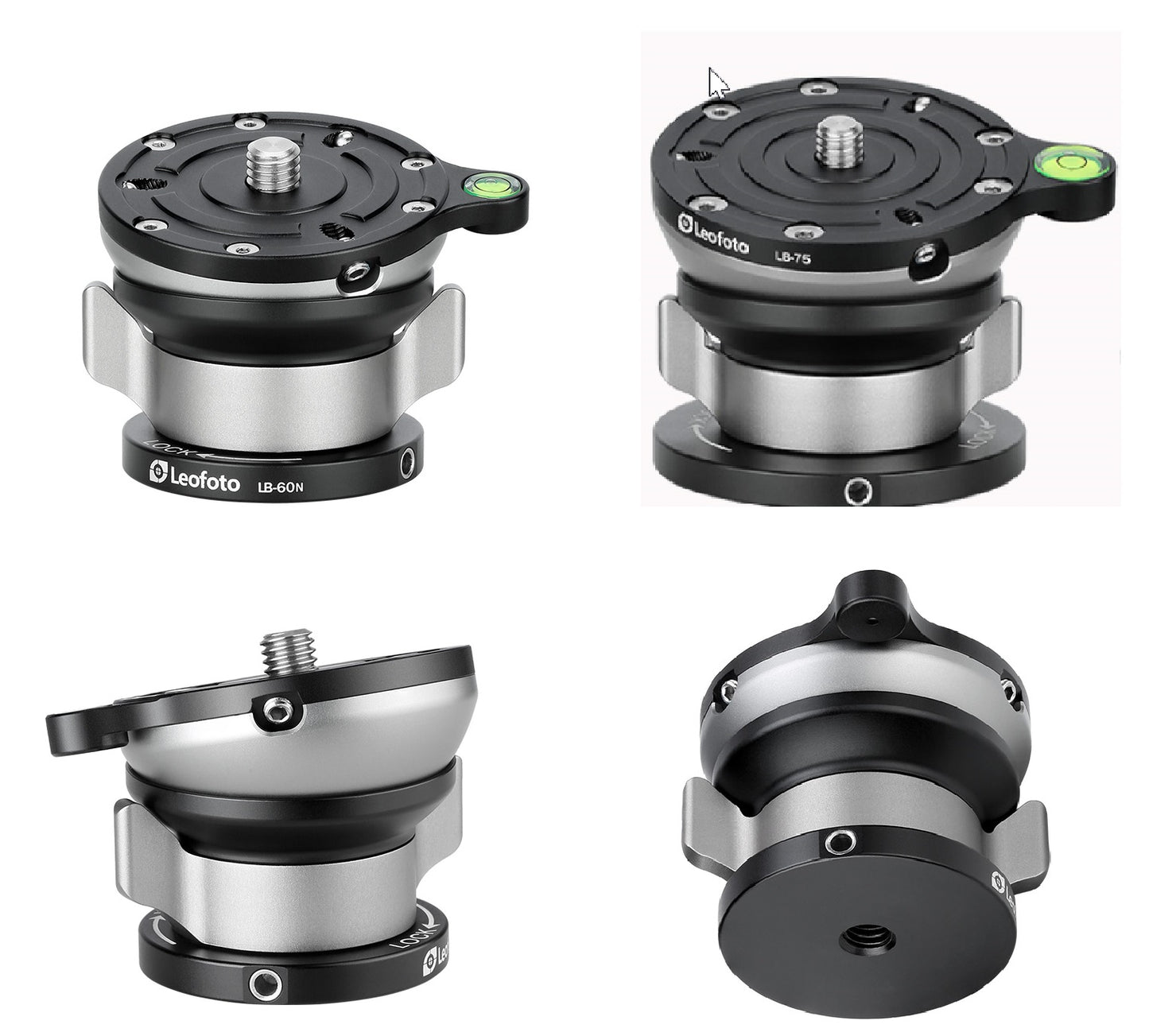

Leofoto LB-60N and LB-75 leveling base

A leveling base on your tripod is the perfect foundation for gimbal heads, fluid heads and even ballheads.
Each leveling base offers +/-15° of leveling capability and locks solidly with just a twist. Choose a leveling base with a flat platform for direct mounting of a tripod head.
CNC machined 6061-T6 Aluminum

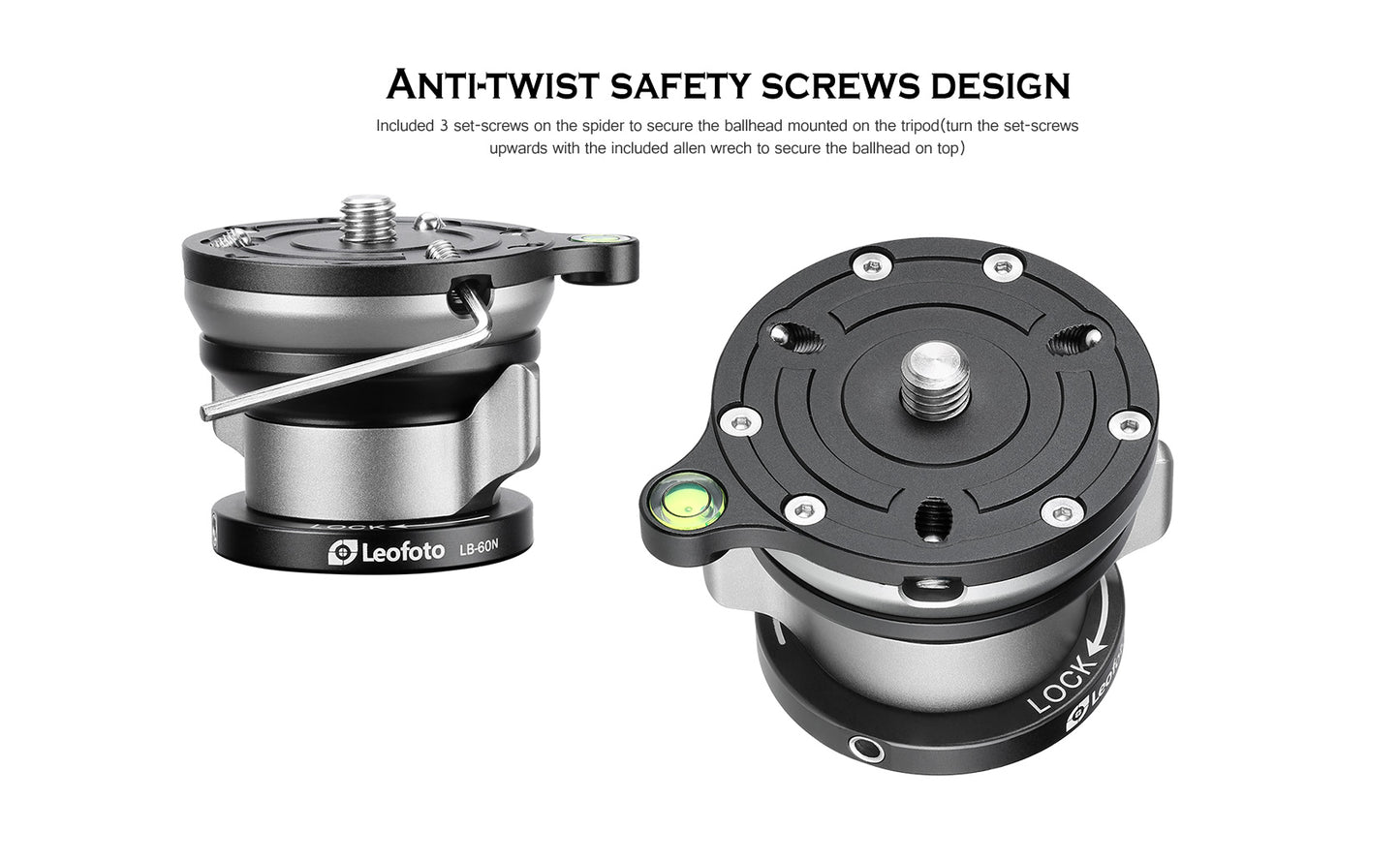

ANTI-TWIST SAFETY SCREWS DESIGN
Included 3 set-screws on the spider to secure the ballhead mounted on the tripod(turn the set-screws upwards with the included allen wrech to secure the ballhead on top).

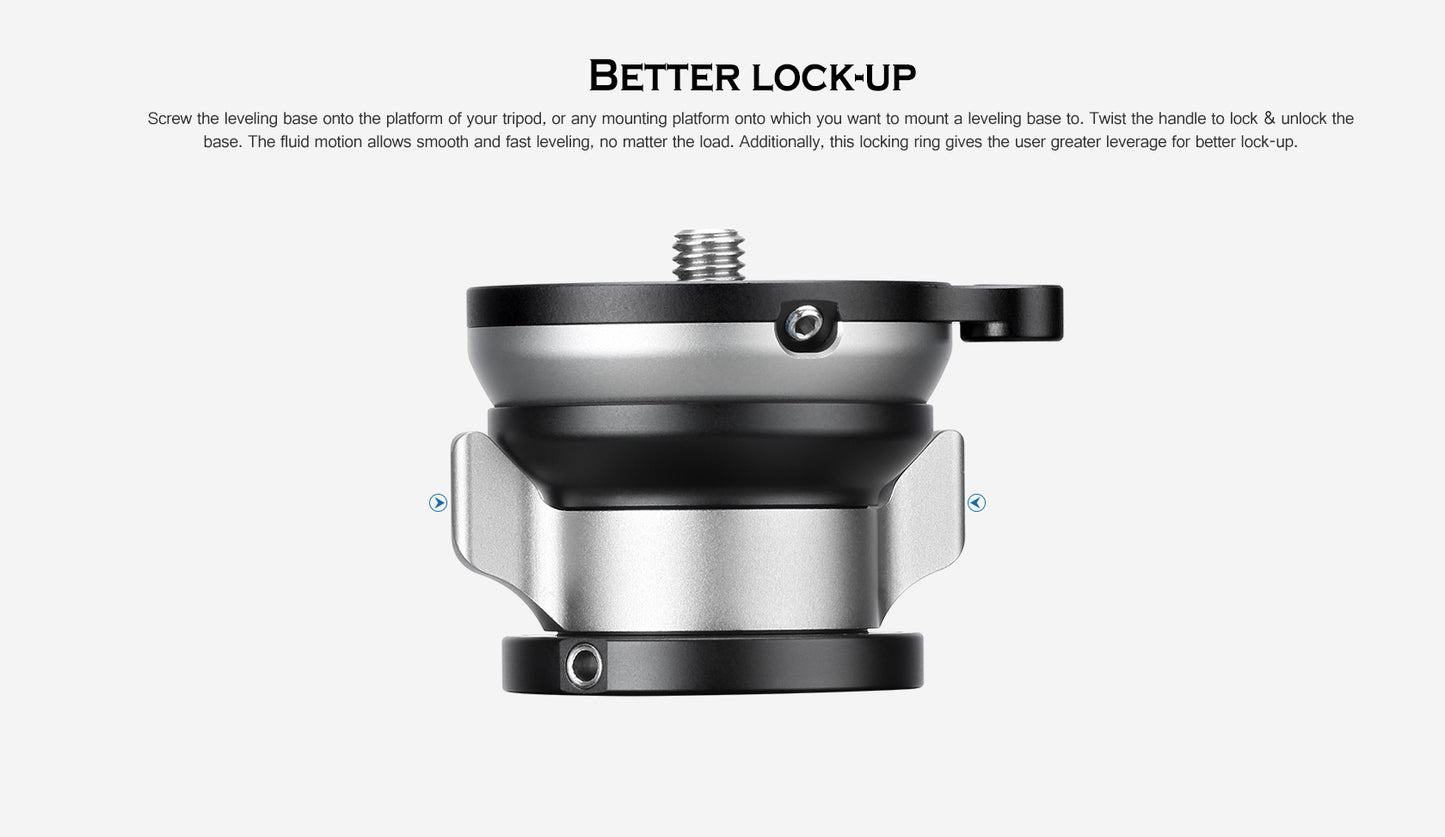

BETTER LOCK-UP
Screw the leveling base onto the platform of your tripod, or any mounting platform onto which you want to mount a leveling base to. Twist the handle to lock & unlock the base. The fluid motion allows smooth and fast leveling, no matter the load. Additionally, this locking ring gives the user greater leverage for better lock-up.

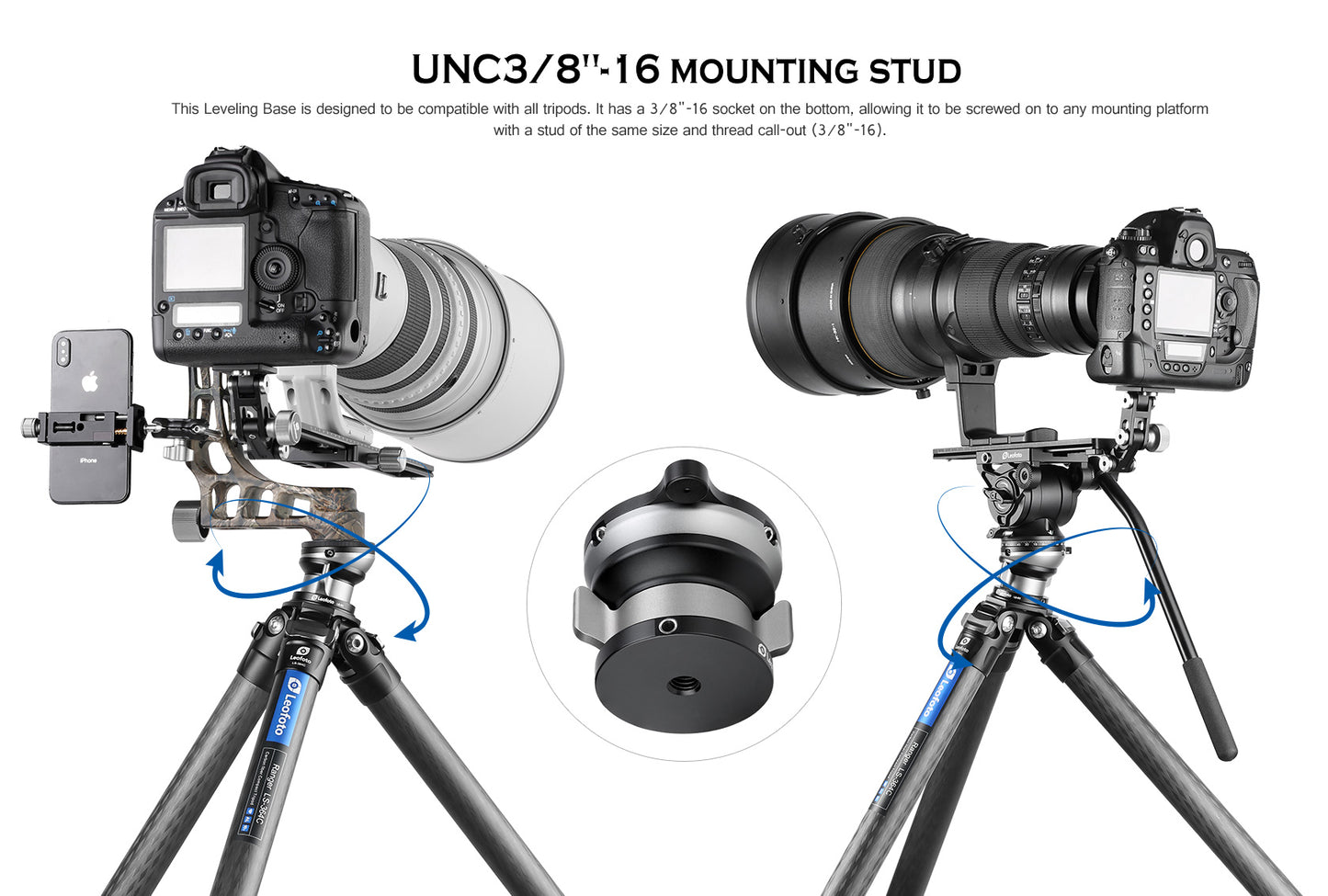

UNC3/ 8"-16 MOUNTING STUD
This Leveling Base is designed to be compatible with all tripods. It has a 3/ 8"-16 socket on the bottom, allowing it to be screwed on to any mounting platform with a stud of the same size and thread call-out (3/8"-16).

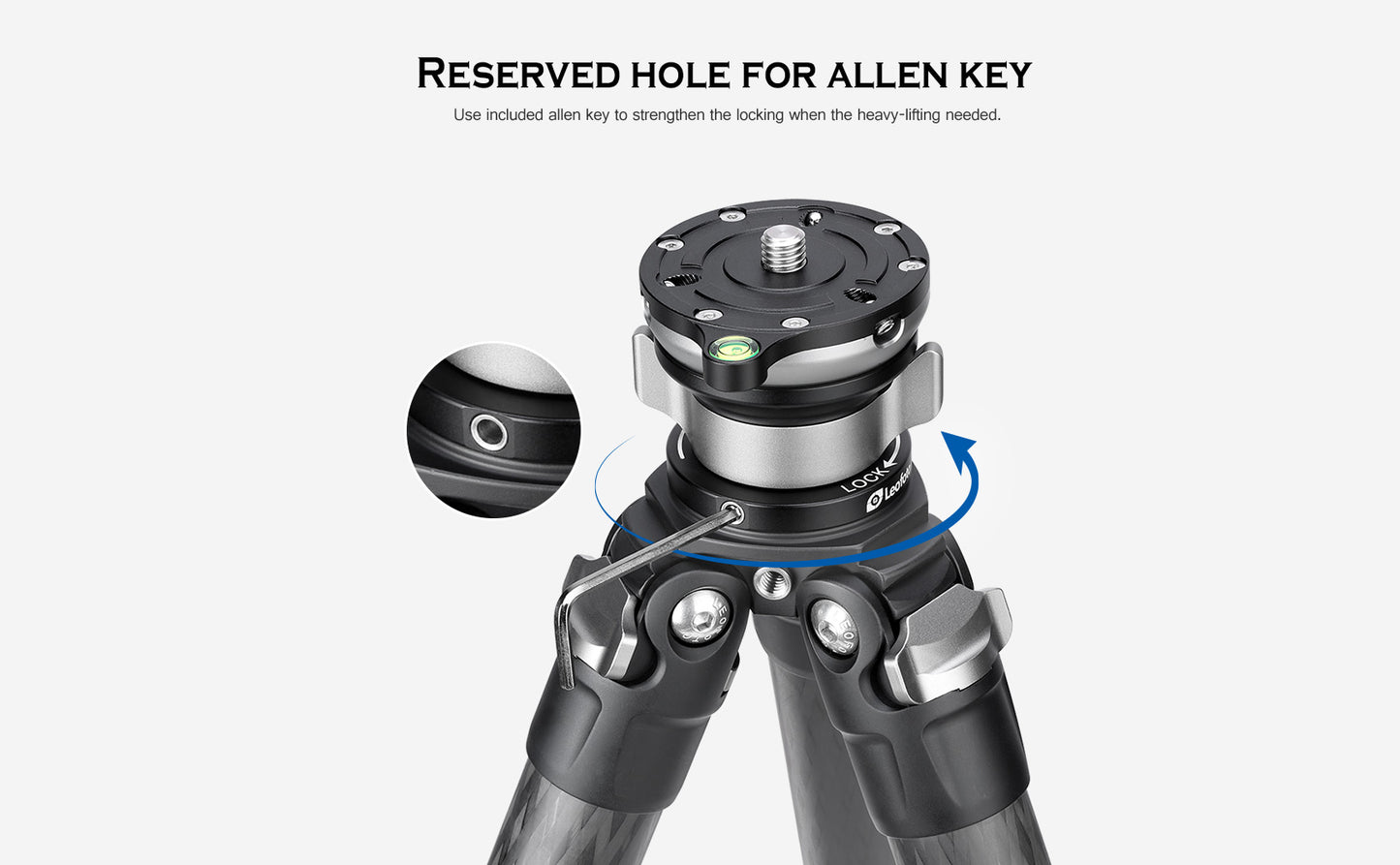

RESERVED HOLE FOR ALLEN KEY
Use included allen key to strengthen the locking when the heay-liting needed.

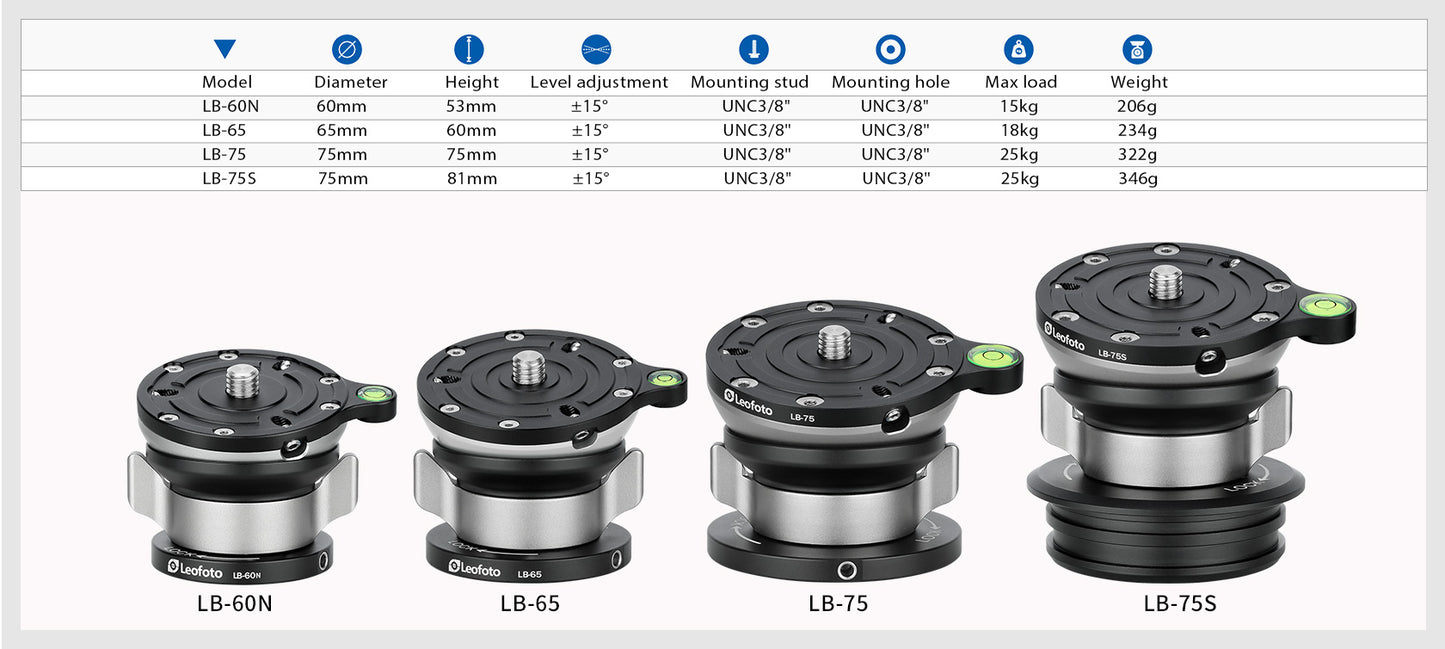

LB-60N

  • ►+15° to -15° Tilt.
  • ►3/8"-16 Top Stud.
  • ►3/8"-16 Bottom Socket w 1/4"-20 Bushing.
  • ►Includes 3 Anti-Rotation Set-Screws.
  • ►Butterfly Type Lock Collar
  • ►Max Load 15kg (33lb).
  • ►Ball Diameter 60mm.
  • ►Weight 206g
  • ►Height 53mm.
  • ►Includes Bubble Level at the outer surface
  • ►Includes Drawstring Storage Pouch.

  • LB-65

  • ►+15° to -15° Tilt.
  • ►3/8"-16 Top Stud.
  • ►3/8"-16 Bottom Socket w 1/4"-20 Bushing.
  • ►Includes 3 Anti-Rotation Set-Screws.
  • ►Butterfly Type Lock Collar
  • ►Max Load 18kg (33lb).
  • ►Ball Diameter 65mm.
  • ►Weight 234g
  • ►Height 60mm.
  • ►Includes Bubble Level at the outer surface
  • ►Includes Drawstring Storage Pouch.

  • LB-75
  • ►+15° to -15° Tilt. ►3/8"-16 Top Stud.
  • ►3/8"-16 Bottom Socket w 1/4"-20 Bushing.
  • ►Includes 3 Anti-Rotation Set-Screws.
  • ►Butterfly Type Lock Collar
  • ►Max Load 25kg (55lb).
  • ►Ball Diameter 75mm.
  • ►Base Diameter 75mm.
  • ►Weight: 322g.
  • ►Height 75mm.
  • ►Includes Bubble Level at the outer surface
  • ►Includes Drawstring Storage Pouch.

  • LB-75S (Note: Fits Leofoto LM-3xx series only)

  • ►+15° to -15° Tilt.
  • ►3/8"-16 Top Stud.
  • ►3/8"-16 Bottom Socket w 1/4"-20 Bushing.
  • ►Includes 3 Anti-Rotation Set-Screws.
  • ►Butterfly Type Lock Collar
  • ►Max Load 25kg (33lb).
  • ►Ball Diameter 60mm.
  • ►Weight 346g
  • ►Height 81mm.
  • ►Includes Bubble Level at the outer surface
  • ►Includes Drawstring Storage Pouch.
  •
