Leofoto BV-20 Fluid head (Arca swiss and quick lever release)

Leofoto BV-20 Fluid head (Arca swiss and quick lever release)

Regular price $548.00 SGD
Regular price $548.00 SGD Sale price $548.00 SGD
Sale Sold out
Taxes included.

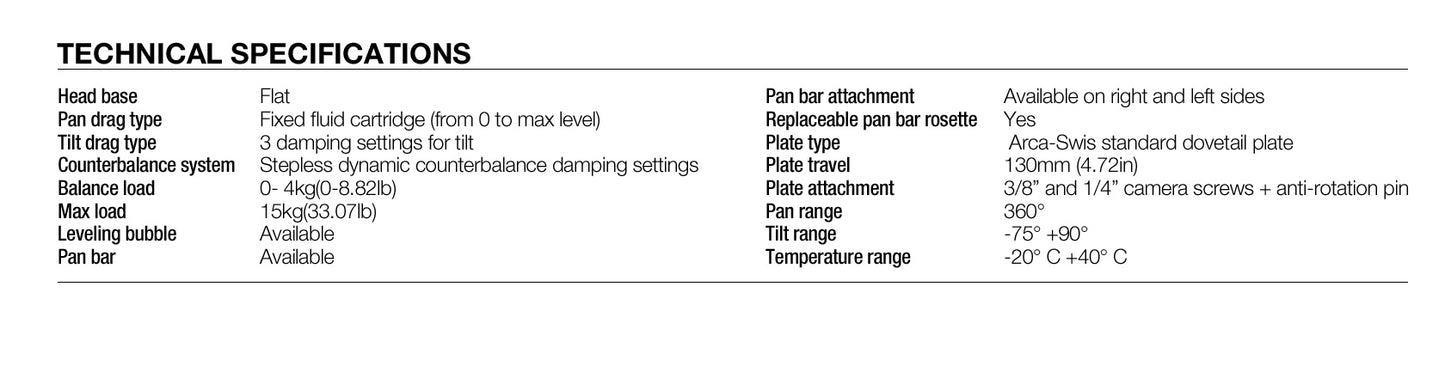

BV-20 Fluid Head Specifications

Key Features
  • 75mm Flat Base with 3/8" Mounting Screw
  • 15kg Max Payload
  • 130mm Arca Quick Release Plate
  • -75-90° Tilt Angle Range

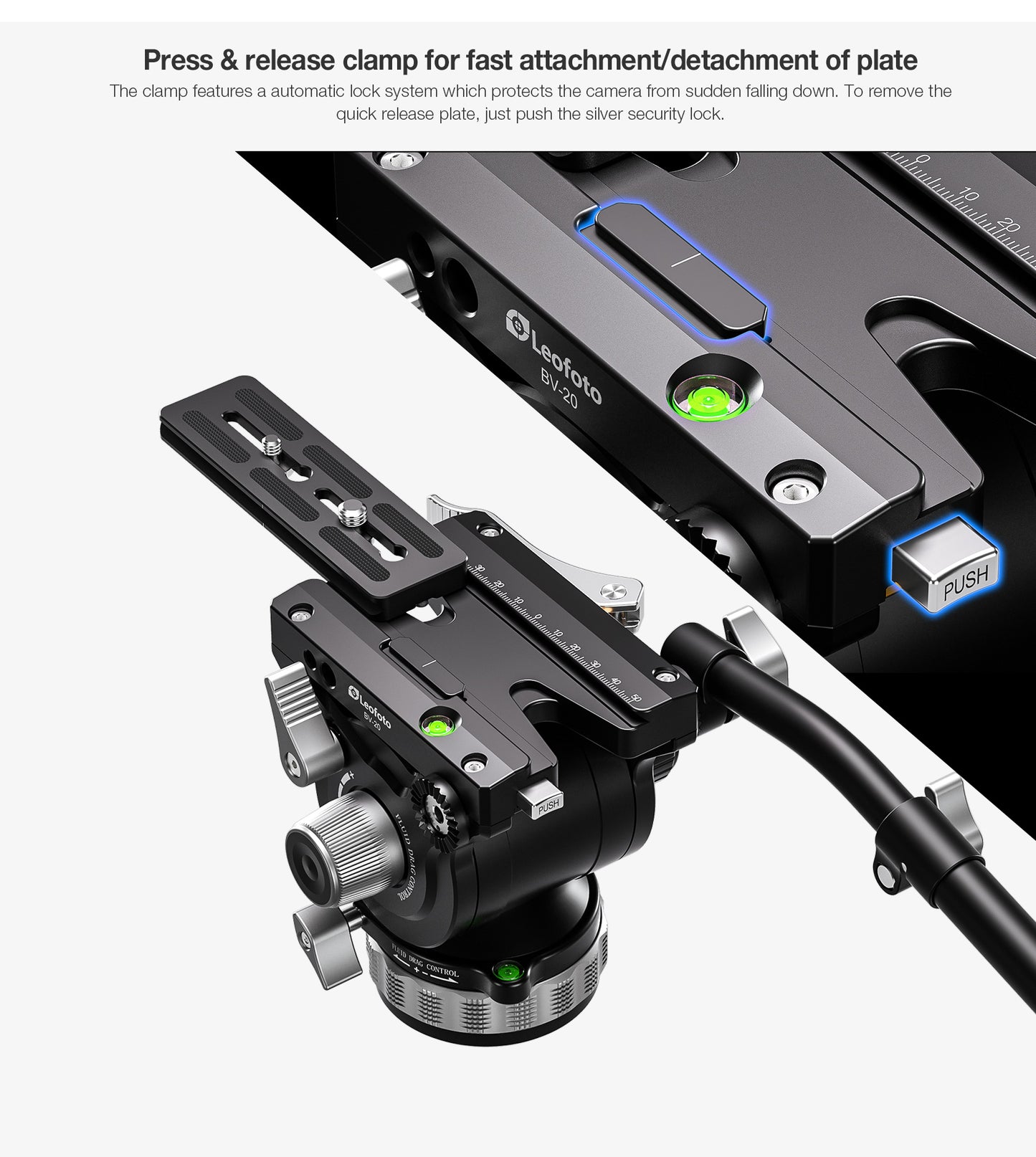

  • Press & Release lever clamp for fast attachment/detachment of plate with security push-lock.
  • Fixed Cartridge Pan Drag
  • 3 damping settings for tilt drag
  • Stepless dynamic counterbalance damping settings
  • Retractable handle for ease of keeping

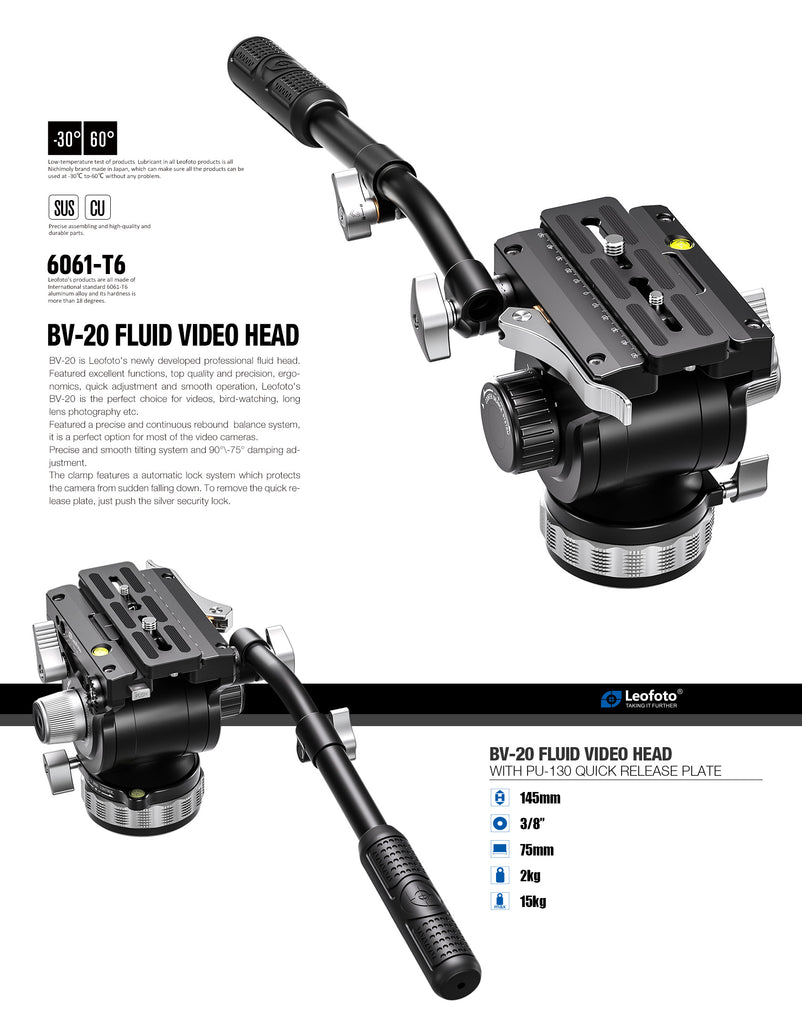

This BV-20 Fluid Tripod Head from Leofoto provides an ergonomic and smooth balancing interface for your camera support setup. The 75mm flat base carries a precisely configured fluid tripod head that features an automatic locking system and continuous rebound balance mechanism. Two integrated bubble levels allow you to properly meet horizons lines. The 3/8"-16 and 1/4"-20 threads accept most any camera accessory and the included handle can be mounted on either side of the head to ensure comfort for any operator.

Base Diameter: 75mm
Arca Swiss Style
Length: 388mm
Height: 145mm
Width: 122mm
Weight: 2kg
Max. load: 15kg
Balance load: 0-4kg
Plate length: 130mm

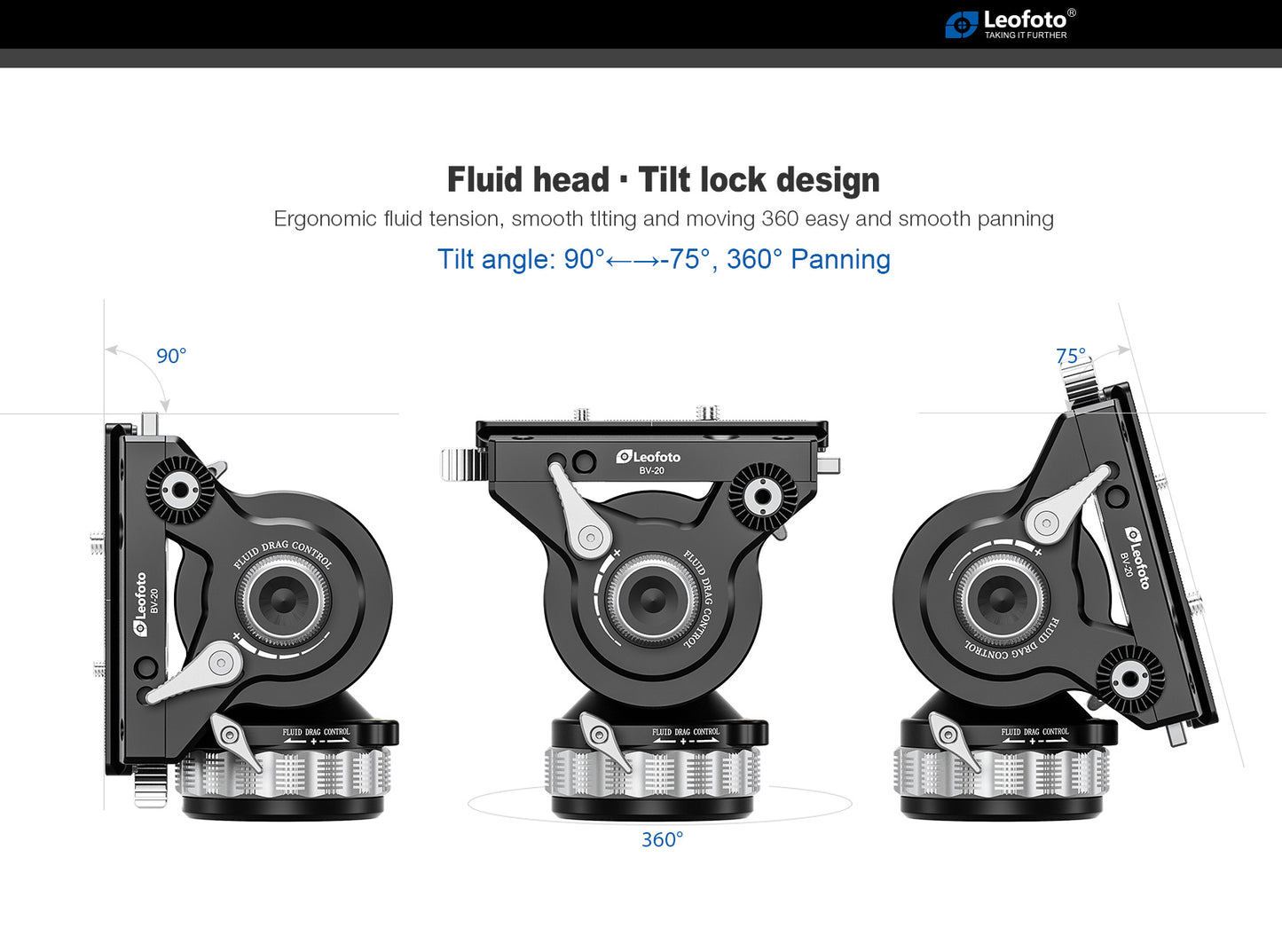

Tilt angle: +90/-75 degrees
Bubble leveler: On panning base and top mount.
